NABIC  |  SKU: 542-65-3

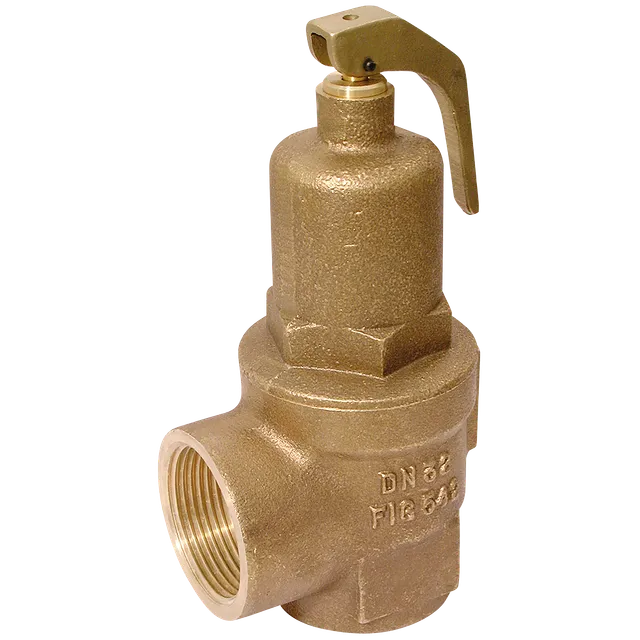

NABIC 2.1/2" Safety Relief Valve

2.1/2" BSP Parallel Female, Safety Relief Valve (Fig 542), Gunmetal, Maximum Working Temperature +195°C,NABIC.

Applications: the Fig 542 safety valve is an extremely versatile valve, suitable for use on hot water, steam or air. Although designed primarily for the protection of hot water boilers, its wide range of applications make it ideal as a general purpose safety valve. Construction: the Fig 542 is of gunmetal construction with diaphragm protected working parts and PTFE to metal seating. All wetted parts manufactured from dezincification resistant materials, approved by the Water Research Centre for use on potable water. Inlet and outlet connections are of equal size, with female threads to BS 21. Sizes from DN32 upwards are also available with flanged inlet connections. Note: Due to pressure setting and certification of this product normal delivery will be up to 3 working days (manufacturers stock permitting), although a quicker service maybe available if required, please contact sales. Features: Resilient PTFE seating designs. High degree of seat tightness. Suitable for hot water, steam or air. Diaphragm protected working parts. Safe manual testing. Easy inspection and cleaning. Pressure setting locked and sealed. Designed and tested to BS 6759. Capacities certified by ATOC. Approved by Water Research Centre. UKWFBS listed. We have listed all the popular sizes and pressure ratings, however other variations are available.

Delivery and Shipping

We’ve got you covered! If you're within our delivery area, expect one of our friendly drivers in our branded vans. If you're just a bit further out, don’t worry FedEx will handle your delivery with the same care and speed!

We aim to deliver within 24 hours of receiving your order, so you get what you need, fast! If it's urgent, just give us a call or drop us a message we’ll do our best to speed things up even more!

New products being added daily!

  • Brand
    NABIC
  • Quality
    Mid Range

For Technical Support

If you need technical support, our team is ready to assist you! Please give us a call or send us an email, and we’ll provide the help you need as quickly as possible.

Call: +44 (0)20 8684 8262

Email: sales@orbic.co.uk

NABIC

NABIC 2.1/2" Safety Relief Valve

2.1/2" BSP Parallel Female, Safety Relief Valve (Fig 542), Gunmetal, Maximum Working Temperature +195°C,NABIC.

Applications: the Fig 542 safety valve is an extremely versatile valve, suitable for use on hot water, steam or air. Although designed primarily for the protection of hot water boilers, its wide range of applications make it ideal as a general purpose safety valve. Construction: the Fig 542 is of gunmetal construction with diaphragm protected working parts and PTFE to metal seating. All wetted parts manufactured from dezincification resistant materials, approved by the Water Research Centre for use on potable water. Inlet and outlet connections are of equal size, with female threads to BS 21. Sizes from DN32 upwards are also available with flanged inlet connections. Note: Due to pressure setting and certification of this product normal delivery will be up to 3 working days (manufacturers stock permitting), although a quicker service maybe available if required, please contact sales. Features: Resilient PTFE seating designs. High degree of seat tightness. Suitable for hot water, steam or air. Diaphragm protected working parts. Safe manual testing. Easy inspection and cleaning. Pressure setting locked and sealed. Designed and tested to BS 6759. Capacities certified by ATOC. Approved by Water Research Centre. UKWFBS listed. We have listed all the popular sizes and pressure ratings, however other variations are available.

Size

  • 3.0 Bar
  • 4.0 Bar
  • 7.5 Bar
View product
