HAITIMA  |  SKU: HT-18-06

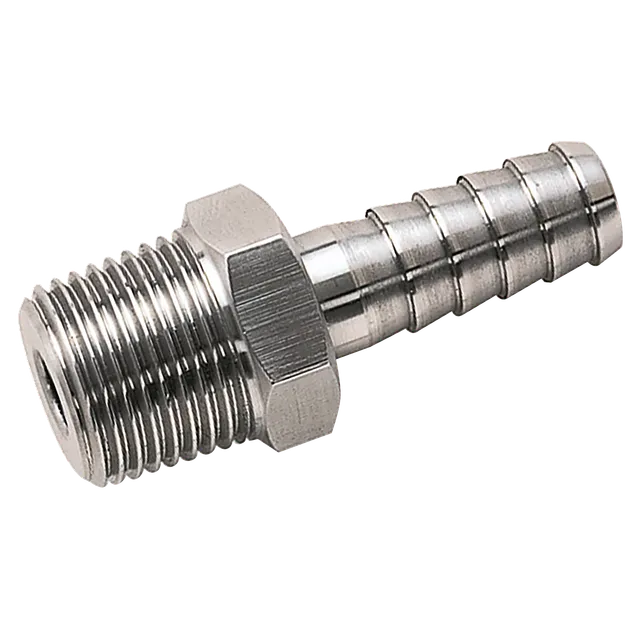

Stainless Steel Hose Tail Adaptor

150lb Tube & Pipe Fitting, BSP Tapered x Hose Tail, Straight, To Suit Hose Inside Diameter 1/4"(6mm), 316 Stainless Steel, Working Temperature -20°C to +260°C, Maximum Pressure 10 bar, Haitima

This technical data is applicable to the full range of 316 Stainless Steel adaptors only. threads: Tapered in conformity with ISO 7.1, BS 21, DIN 2999. Parallel in conformity with BS 2779, ISO 228. Dimensions: All components are manufactured to the requirements of ASTM A-351. The dimensions are in accordance with ANSI B16.3

Delivery and Shipping

We’ve got you covered! If you're within our delivery area, expect one of our friendly drivers in our branded vans. If you're just a bit further out, don’t worry FedEx will handle your delivery with the same care and speed!

We aim to deliver within 24 hours of receiving your order, so you get what you need, fast! If it's urgent, just give us a call or drop us a message we’ll do our best to speed things up even more!

New products being added daily!

  • Brand
    HAITIMA
  • Quality
    Mid-Range
  • Type
    Hosetail

For Technical Support

If you need technical support, our team is ready to assist you! Please give us a call or send us an email, and we’ll provide the help you need as quickly as possible.

Call: +44 (0)20 8684 8262

Email: sales@orbic.co.uk

HAITIMA

Stainless Steel Hose Tail Adaptor

150lb Tube & Pipe Fitting, BSP Tapered x Hose Tail, Straight, To Suit Hose Inside Diameter 1/4"(6mm), 316 Stainless Steel, Working Temperature -20°C to +260°C, Maximum Pressure 10 bar, Haitima

This technical data is applicable to the full range of 316 Stainless Steel adaptors only. threads: Tapered in conformity with ISO 7.1, BS 21, DIN 2999. Parallel in conformity with BS 2779, ISO 228. Dimensions: All components are manufactured to the requirements of ASTM A-351. The dimensions are in accordance with ANSI B16.3

To Suit Hose ID

  • 1/8" BSPT to 1/4" (6mm) Hose
  • 1/4" BSPT to 1/4" (6mm) Hose
  • 1/4" BSPT to 5/16" (8mm) Hose
  • 1/4" BSPT to 3/8" (10mm) Hose
  • 1/4" BSPT to 1/2" (13mm) Hose
  • 3/8" BSPT to 5/16" (8mm) Hose
  • 3/8" BSPT to 3/8" (10mm) Hose
  • 3/8" BSPT to 1/2" (13mm) Hose
  • 1/2" BSPT to 1/4" (6mm) Hose
  • 1/2" BSPT to 3/8" (10mm) Hose
  • 1/2" BSPT to 1/2" (13mm) Hose
  • 1/2" BSPT to 3/4" (19mm) Hose
  • 1/2" BSPT to 1" (25mm) Hose
  • 1/2" BSPT to 5/8" Hose
  • 3/4" BSPT to 1/2" (13mm) Hose
  • 3/4" BSPT to 3/4" (19mm) Hose
  • 1" BSPT to 3/4" (19mm) Hose
  • 1" BSPT to 1" (25mm) Hose
  • 1" BSPT to 1-1/4" (31mm) Hose
  • 1-1/4" BSPT to 1-1/4" (31mm) Hose
  • 1-1/2" BSPT to 1-1/2" (38mm) Hose
  • 2" BSPT to 2" (50mm) Hose
  • 2-1/2" BSPT to 2-1/2" (63mm) Hose
  • 3" BSPT to 3" (75mm) Hose
  • 4" BSPT to 4" (100mm) Hose
